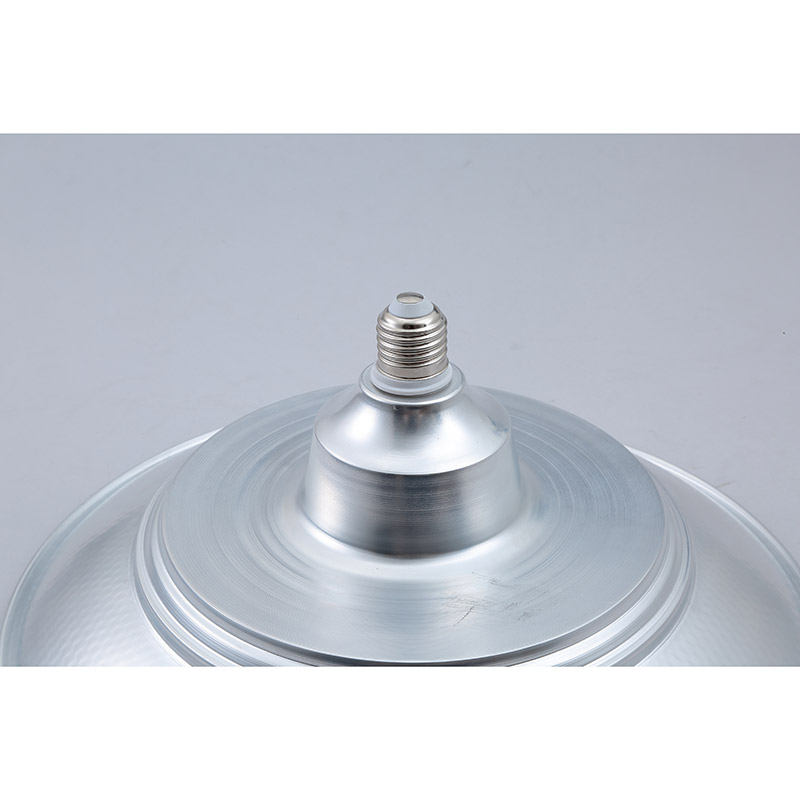

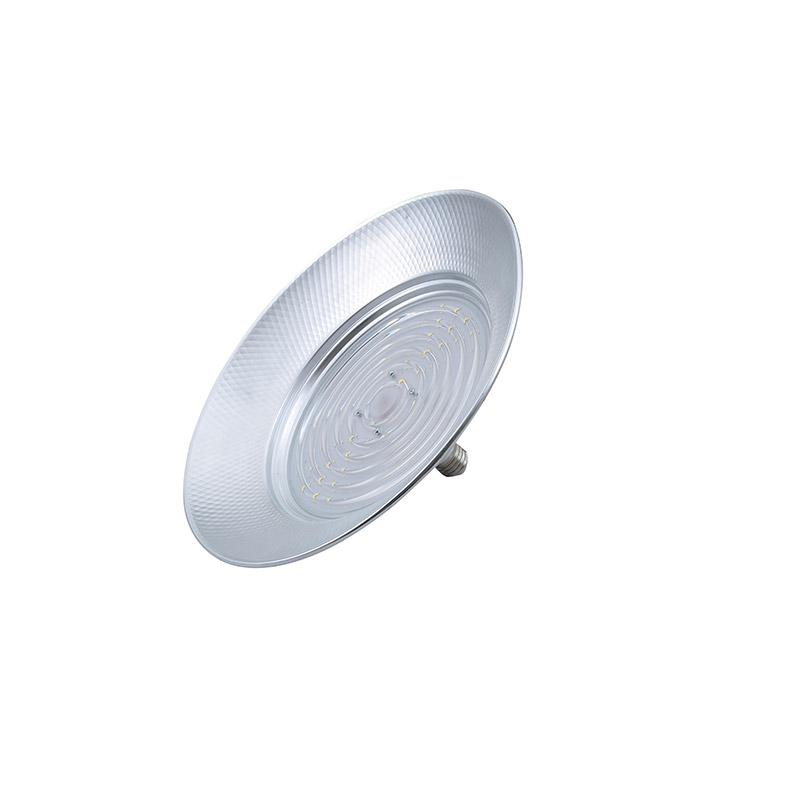

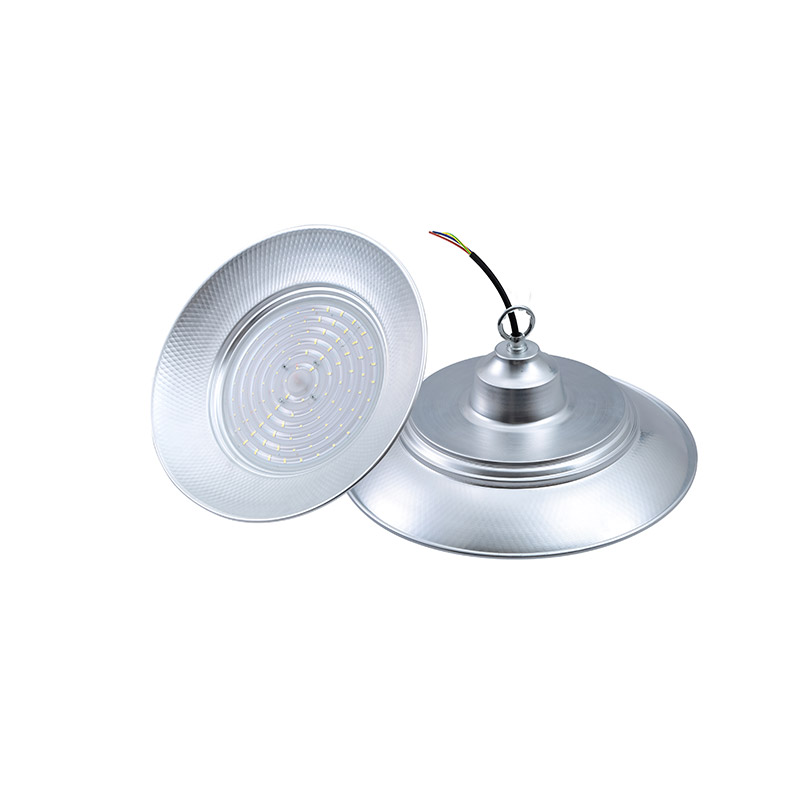

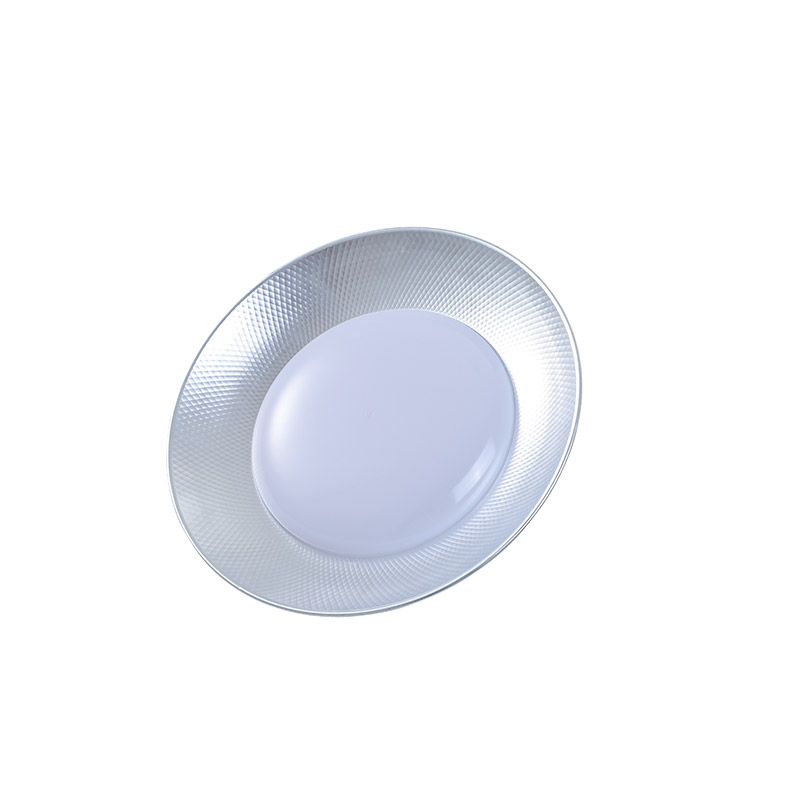

Shinning Series LED High Bay is the perfect combination of our engineers’ creative ideas in optics,
heat, electrics and aesthetics. With a fluid metal surface, excellent parameter.
The aim of design is to endow our products more practical value and extrinsic reflection.
The characteristics of simplicity, stability, modernity and vitality are efficiently integrated in our product.
Suitable for workshop, warehouse, shopping mall, exhibition center, parking lot, stadium, supermarket, etc.
| GENERAL SPECIFICATION | |
| LED Type | 2835 |
| Power Factor | ＞0.5 |
| Ra | ≥80 |
| Color Temperature | 3200K/6500K |
| Warranty | 2 years |
| Model No. | Wattage | LED qty | Material | Lamp Size(MM) | Input | Frequency Range | Lumen/W |
| HL-SFGK50W-KYTJ | 50W | 50 pcs | Aluminum+PC | φ280*140 | 175V-265V | 50/60Hz | 90 lm/w |
| HL-SFGK100W-KYTJ | 100W | 100 pcs | Aluminum+PC | φ320*140 | 175V-265V | 50/60Hz | 90 lm/w |
| HL-SFGK150W-KYTJ | 150W | 150 pcs | Aluminum+PC | φ380*160 | 175V-265V | 50/60Hz | 90 lm/w |
| HL-SFGK200W-KYTJ | 200W | 200 pcs | Aluminum+PC | φ430*170 | 175V-265V | 50/60Hz | 90 lm/w |
| Model No. | Wattage | LED qty | Material | Lamp Size(MM) | Input | Frequency Range | Lumen/W |
| HL-SFGK50W-XXNB | 50W | 48 pcs | Aluminum+PC | φ310*160 | 220V-240V | 50/60Hz | 80 lm/w |
| HL-SFGK100W-XXNB | 100W | 102 pcs | Aluminum+PC | φ360*160 | 220V-240V | 50/60Hz | 80 lm/w |
