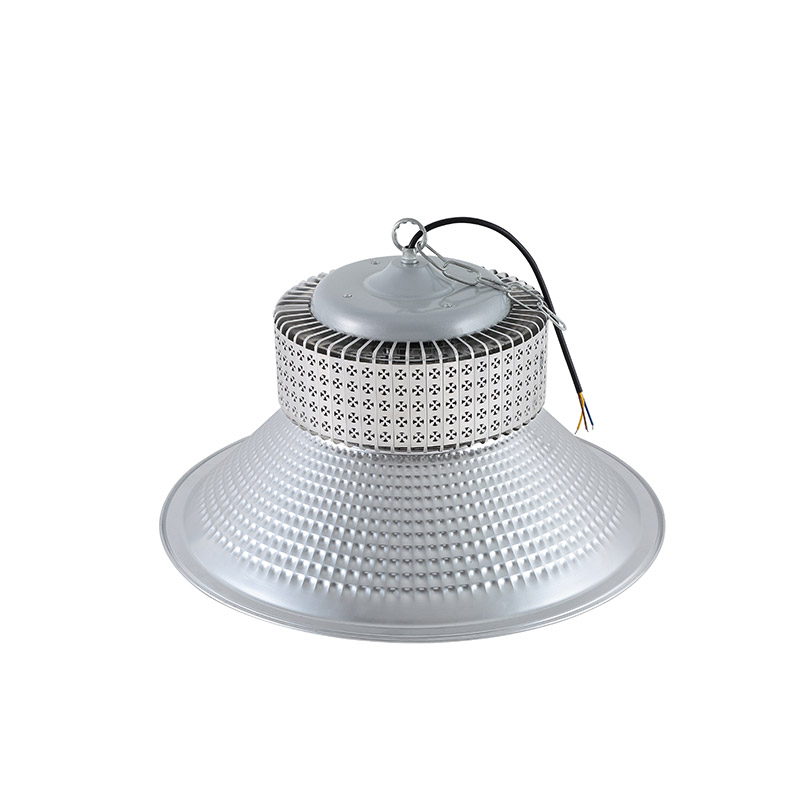

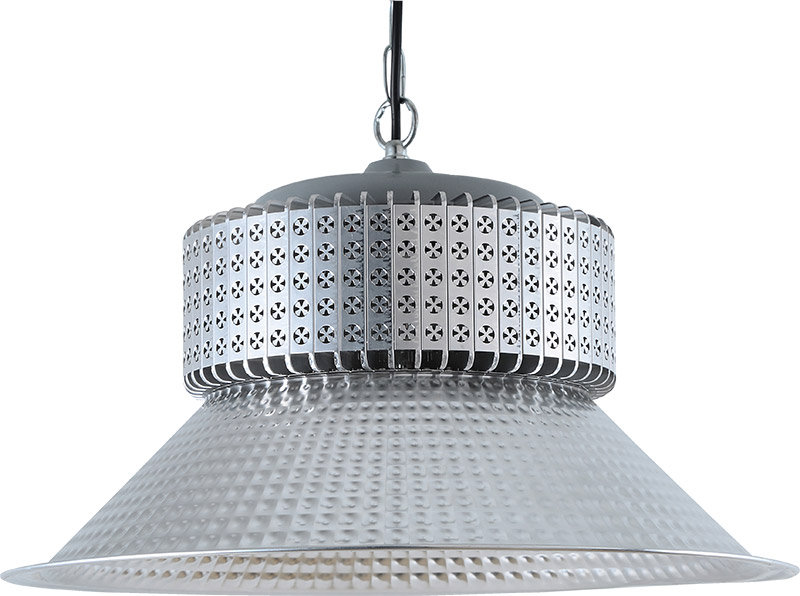

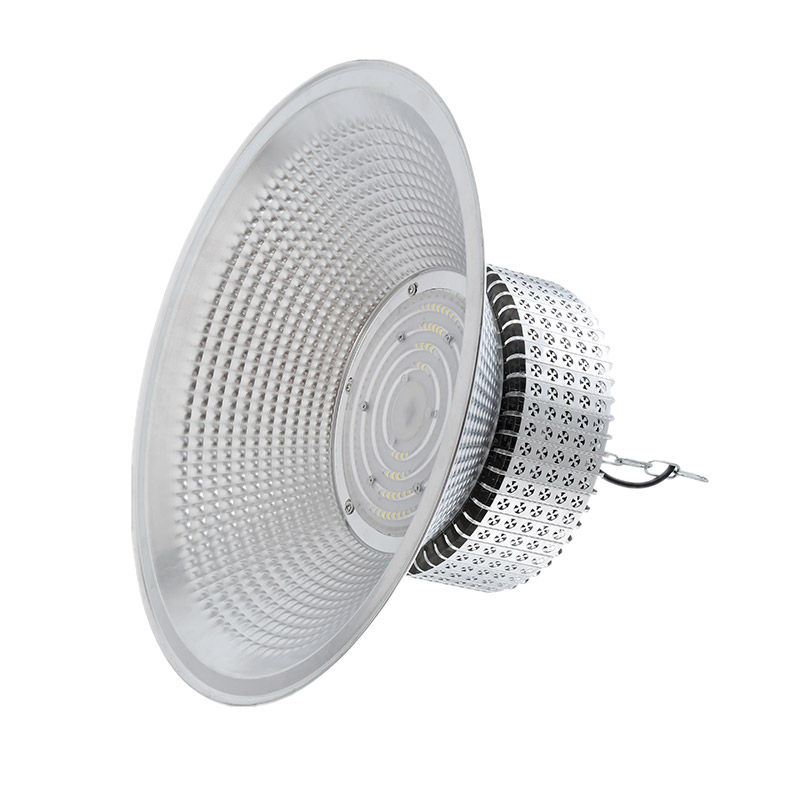

Diamonds Series LED High Bay is the perfect combination of our engineers’ creative ideas in optics,
heat, electrics and aesthetics. With a fluid metal surface, excellent parameter.
The aim of design is to endow our products more practical value and extrinsic reflection.
The characteristics of simplicity, stability, modernity and vitality are efficiently integrated in our product.
Suitable for workshop, warehouse, shopping mall, exhibition center, parking lot, stadium, supermarket, etc.
| GENERAL SPECIFICATION | |
| LED Type | 2835 |
| Power Factor | PF＞0.5 |
| Ra | ≥80 |
| Color Temperature | 3200K/6500K |
| Warranty | 2 years |
| Model No. | Wattage | LED qty | Material | Lamp Size(MM) | Input | Frequency Range | Lumen/W |
| HL-WBGK100W-KY | 100W | 120 pcs | Aluminum+PC | φ400*270mm | 90V-265V | 50/60Hz | 100 lm/w |
| HL-WBGK150W-KY | 150W | 180 pcs | Aluminum+PC | φ400*300mm | 90V-265V | 50/60Hz | 100 lm/w |
| HL-WBGK200W-KY | 200W | 240 pcs | Aluminum+PC | φ490*300mm | 90V-265V | 50/60Hz | 100 lm/w |
| HL-WBGK100W-XX | 100W | 112 pcs | Aluminum+PC | φ400*250mm | 220V-240V | 50/60Hz | 100 lm/w |
| HL-WBGK150W-XX | 150W | 140 pcs | Aluminum+PC | φ400*270mm | 220V-240V | 50/60Hz | 100 lm/w |
| HL-WBGK200W-XX | 200W | 196 pcs | Aluminum+PC | φ450*300mm | 220V-240V | 50/60Hz | 100 lm/w |
